200kg Weight Stacks
Multiple Workout Stations
Light Commercial Grade
2.5kg Increments
Light Commercial Grade · 75×75mm Frame · 3mm Steel · 505kg Machine Weight — The US586 is engineered for studios and serious home gyms that demand professional-level durability and versatility without compromise.
Professional strength system

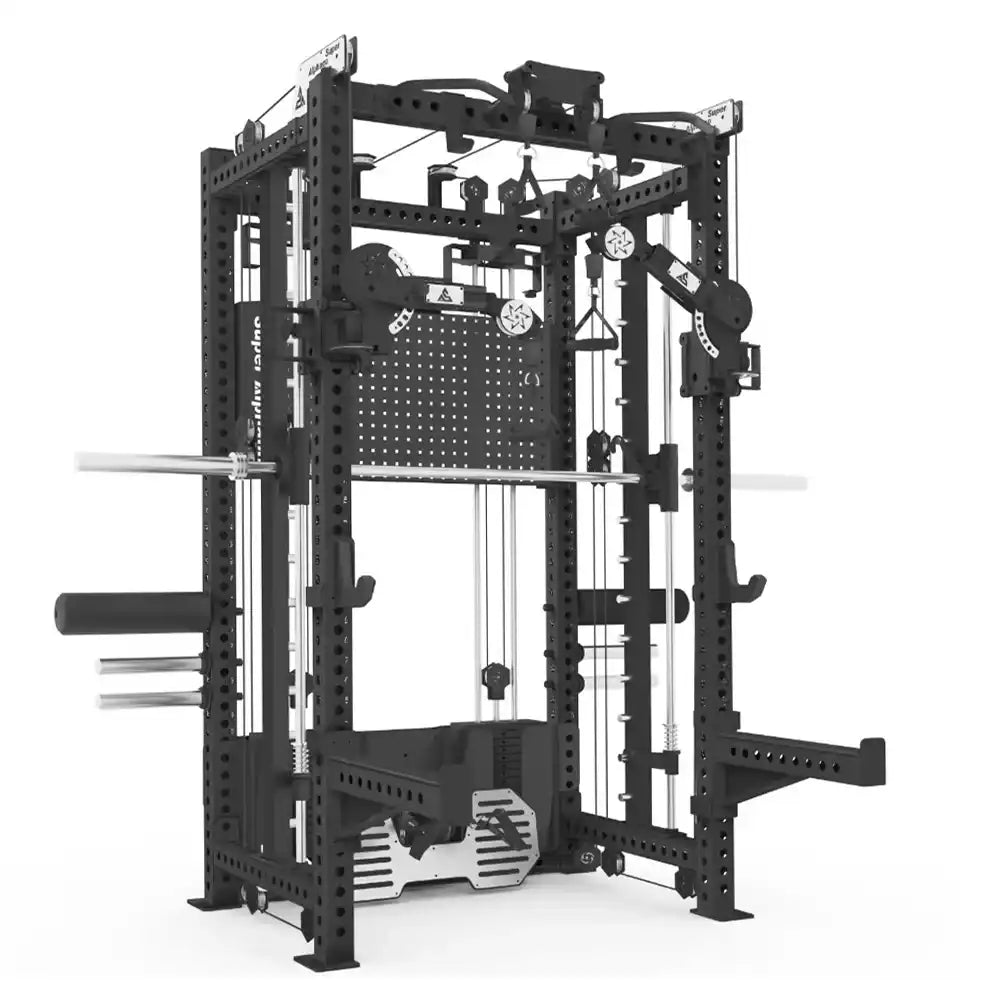

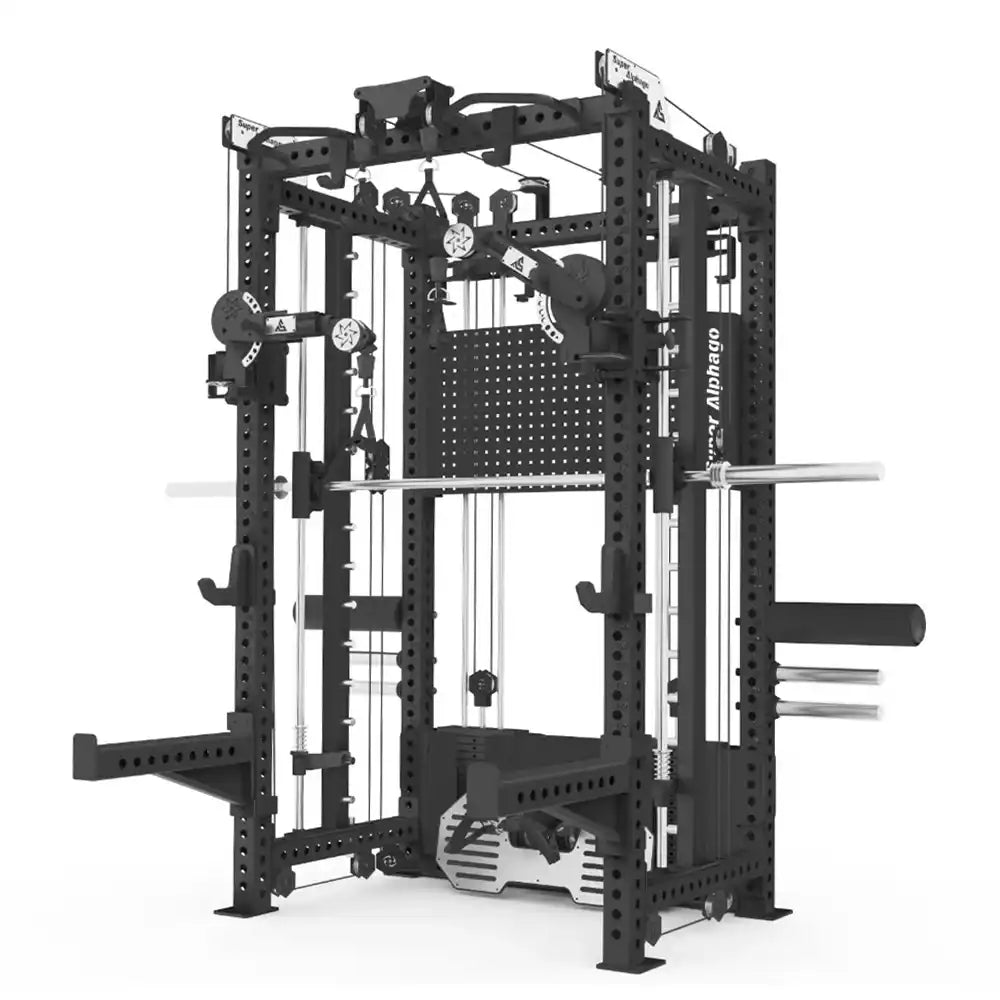

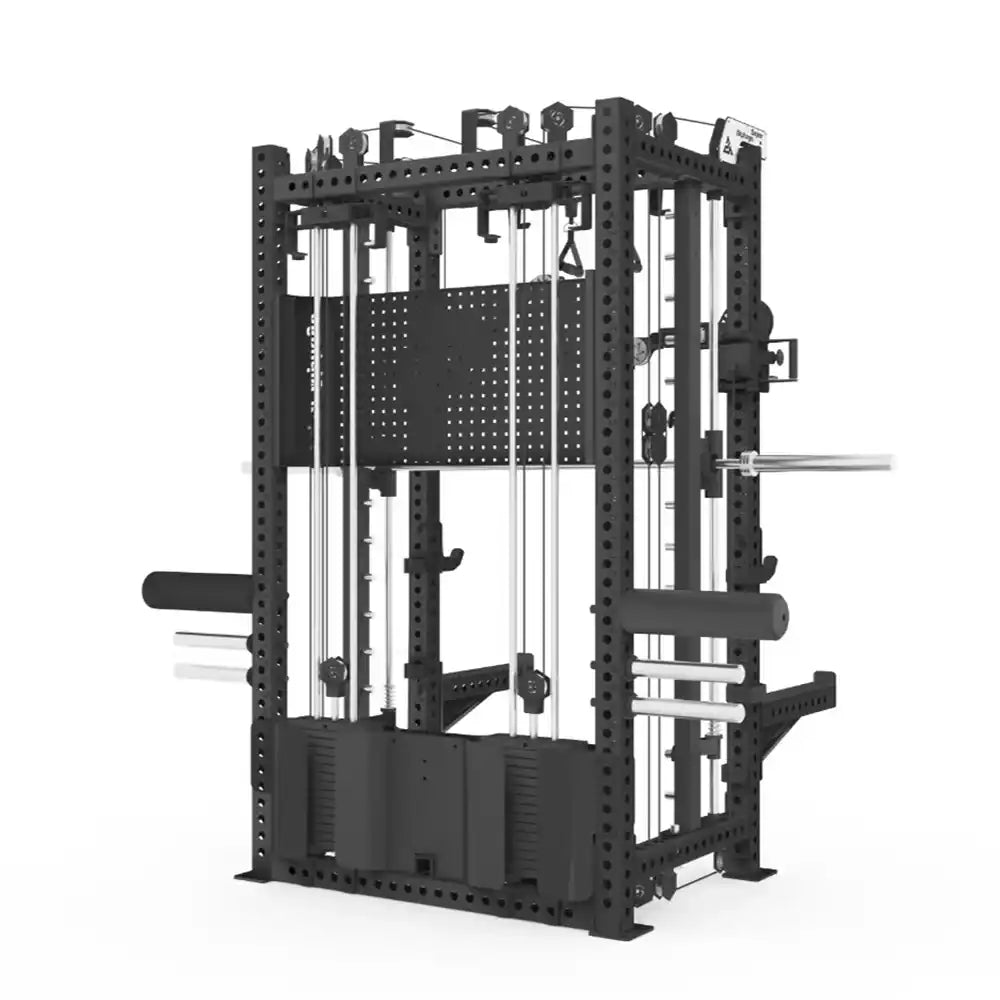

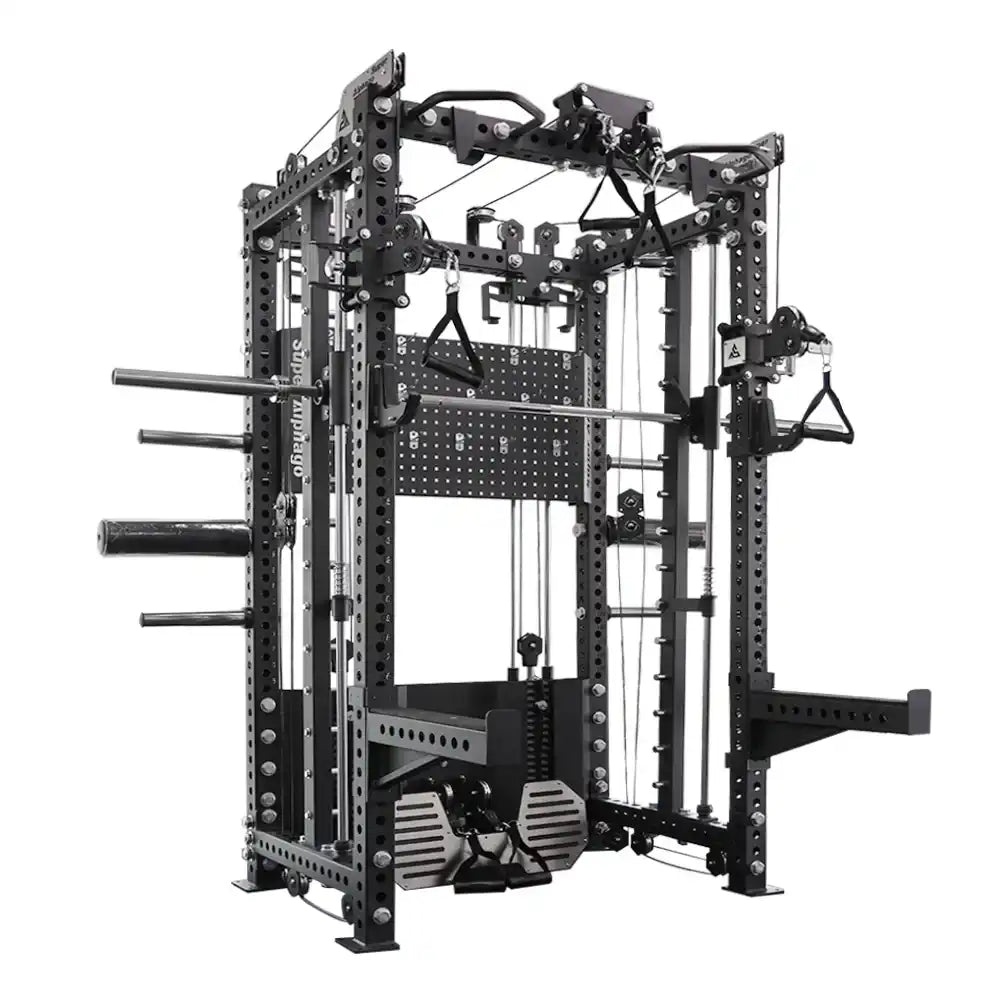

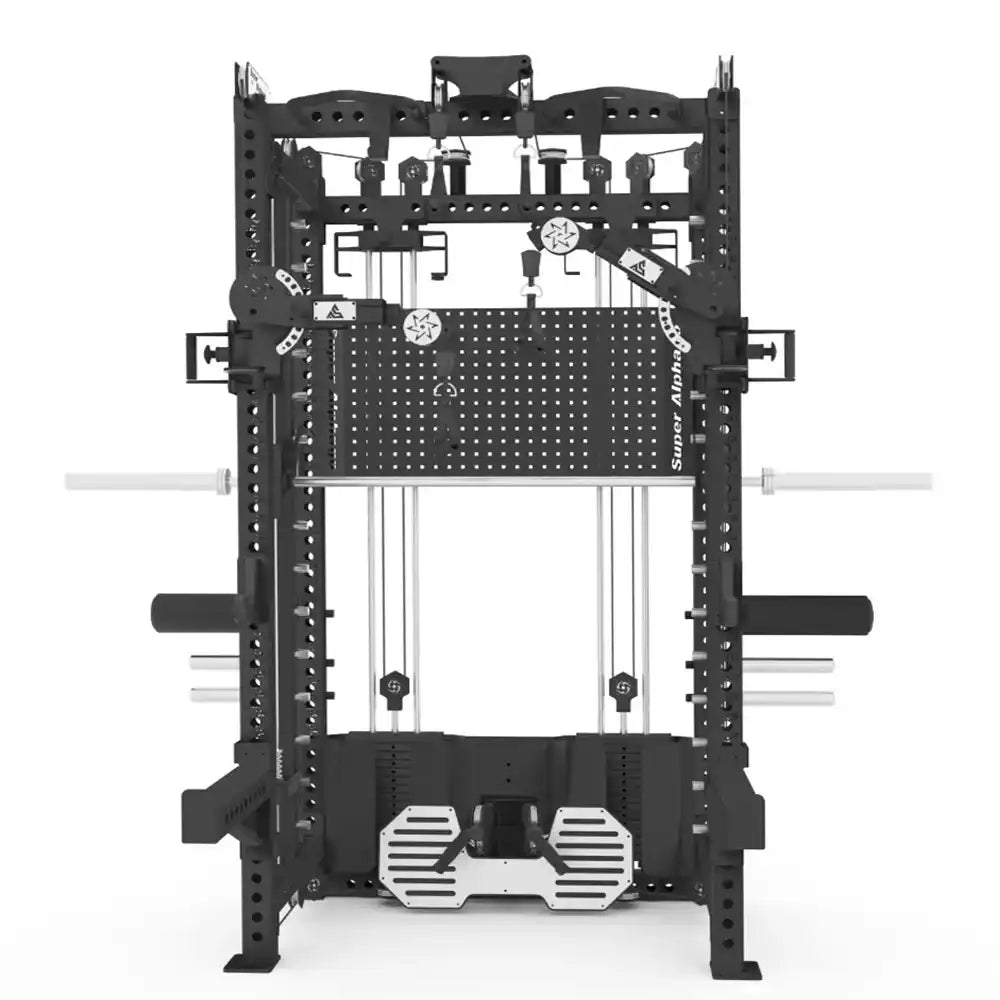

Multi-Functional Smith Machine US586

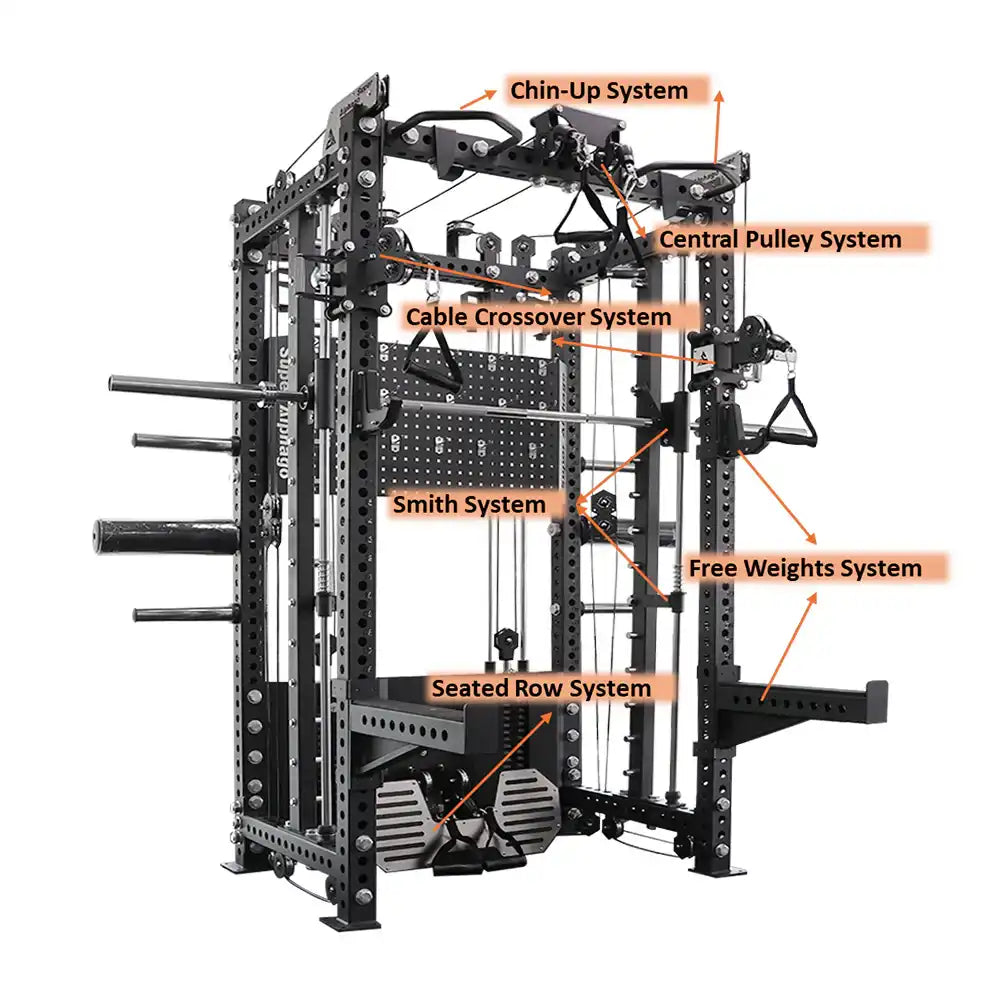

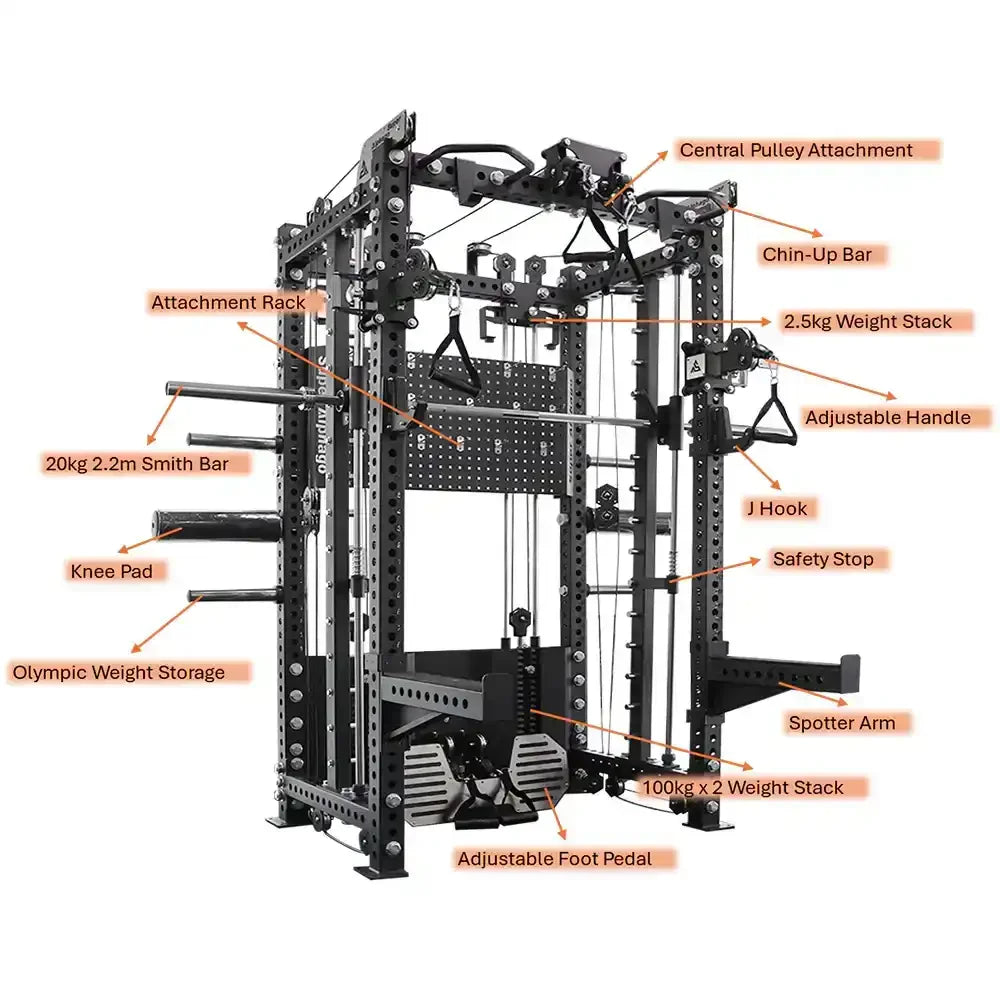

Built for experienced athletes and private studios, the US586 packs a guided Smith bar, free-weight squat rack, dual 100 kg cable systems, pull-up/chin-up station, and seated row station into one light commercial-grade machine. A 75×75 mm, 3 mm-thick steel frame and 2.5 kg increment weight stacks deliver precision and durability that outlasts the competition.
Engineered precision
Smith System
Copper bushings reduce friction and keep the bar gliding silently along the guide rails. The 20 kg Olympic bar spans 2.2 m with volcano knurling — firm grip traction without discomfort — and a welded hook stopper on each sleeve prevents over-rotation and wrist strain.
Dual safety catches and a damping spring allow fast re-racking at any height while absorbing impact when lowering or dropping the bar — a critical safety feature for solo training sessions at high intensity.
30-level precision
Cable System
30 cut-out position markers on each side make height identification instant and accurate. The pin-lock mechanism enables one-handed adjustments mid-workout — no fumbling between sets. Aluminium alloy pulleys deliver smoother rotation and longer service life than standard steel variants.
Each side carries a labelled 100 kg metal weight stack for accurate load tracking. An optional Adjustable Cable Trolley Arm expands movement paths for functional training at any angle.
Precision overload
2.5 kg Increment Weight Stacks
Most pin-loaded machines jump in 5 kg increments — the US586 halves that. A top-pin system on each weight stack lets you pull the pin, reposition, and train in 2.5 kg steps for finer progressive overload. When coarser steps are preferred, return the pin to its standard position instantly.
Smaller increments mean more sustainable progression — especially valuable for isolation exercises, rehabilitative training, and advanced periodisation programmes.
Balanced pull mechanics
Central Pulley Seated Row Station
Unlike single-cable row setups, the US586 uses a central pulley that combines both cable sides, delivering greater symmetry and stability throughout the pull. No imbalanced loading, no lateral drift — just clean, bilateral back training.
The seated row foot plate features four adjustable depth positions to accommodate different leg lengths, ensuring proper spinal alignment and reducing strain on the lower back — regardless of your height.
Ready to Build?
Download the full user manual for step-by-step assembly instructions before installation.
Download User Manual (PDF)Key Features
Professional-Grade Frame
75×75 mm tubing at 3 mm wall thickness — substantially heavier than standard home-gym Smith machines — built for frequent, intense daily use.
Dual 100 kg Weight Stacks
200 kg total resistance with labelled metal plates for accurate load tracking and a top-pin 2.5 kg half-increment system.
Copper Bushing Smith Bar
Friction-reduced glide with volcano knurling, hook stoppers, dual safety catches, and a damping spring for safe solo lifting.
30-Level Cable Positions
Aluminium alloy pulleys with cut-out markers and a pin-lock mechanism for fast, precise one-handed height adjustments.
Central Pulley Row Station
Bilateral cable merge for balanced resistance; four-position adjustable foot plate fits users of all heights with correct spinal alignment.
Space-Efficient Studio Design
Multi-function layout with attachment storage board, weight plate storage, knee pad, and a sleek aesthetic suited to any professional environment.
Specifications
| Spec | Value |
|---|---|

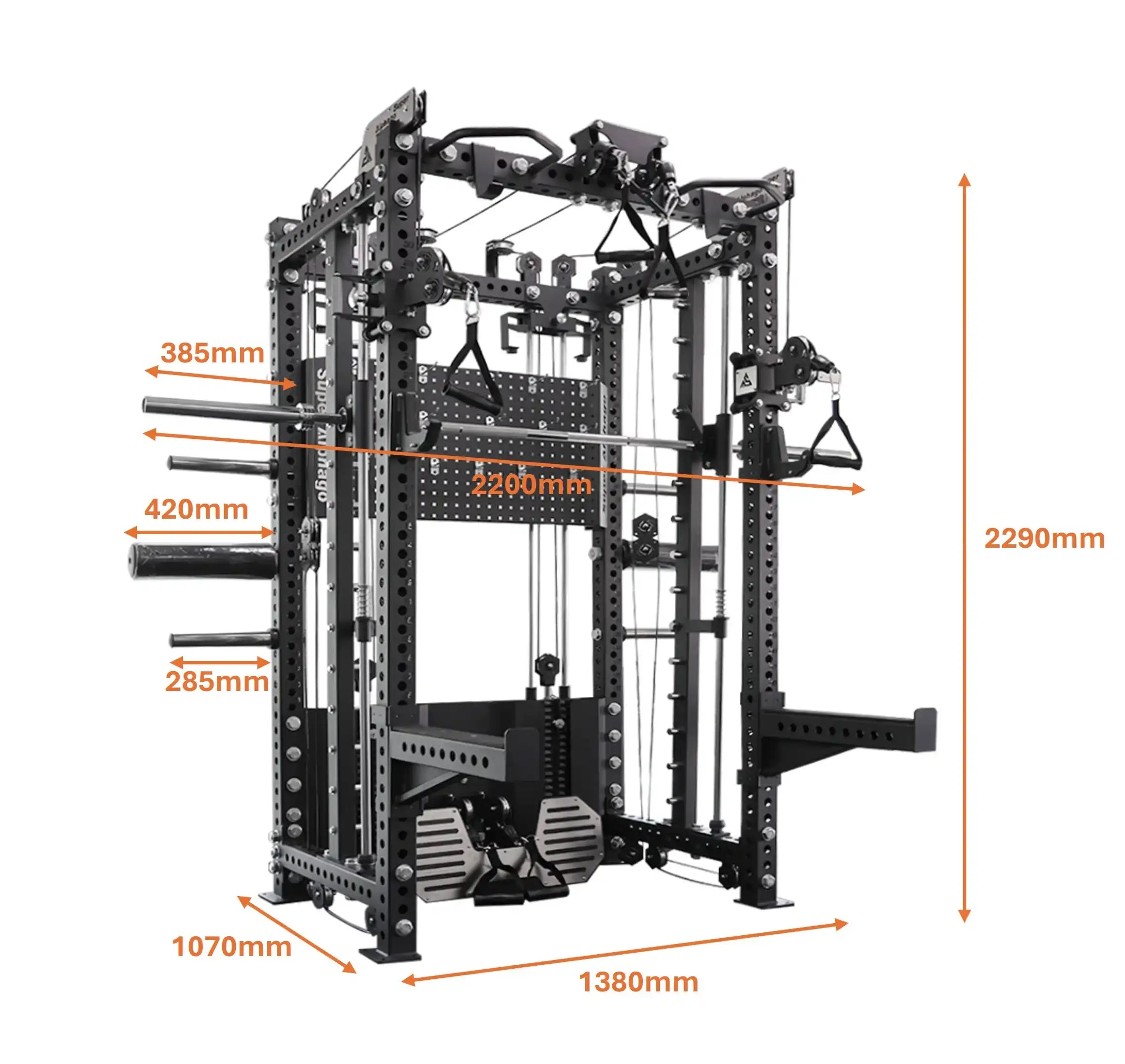

| Assembled Dimensions | 2200 × 1590 × 2290 mm |
| Frame Dimensions | 75 × 75 mm, 3 mm thickness |
| Olympic Smith Barbell | 2300 mm length, 20 kg |
| Machine Weight | 505 kg |
| Package | 2300×730×580 mm (500 kg) + 1130×660×260 mm (22 kg) |
| Part | Load Capacity |
|---|---|
| Cable System | 400 kg |
| Spotter Arms | 300 kg |
| J-Hooks | 300 kg |
| Chin-Up Bar | 300 kg |
Suitable For
- Private studios and light commercial facilities needing a durable all-in-one solution
- Experienced athletes demanding precise load progression and professional-grade construction
- Home gym enthusiasts wanting the highest-spec machine available
- Users in rehabilitation requiring guided, controlled barbell movement with fine resistance steps
Warranty
-
Frame✓ 10 Years — Home Use ✓ 5 Years — Light Commercial
-
Parts✓ 3 Years — Home Use ✓ 1 Year — Light Commercial
- Please read the user manual carefully before installation. Commercial warranty terms differ — consult your account manager for full details.
